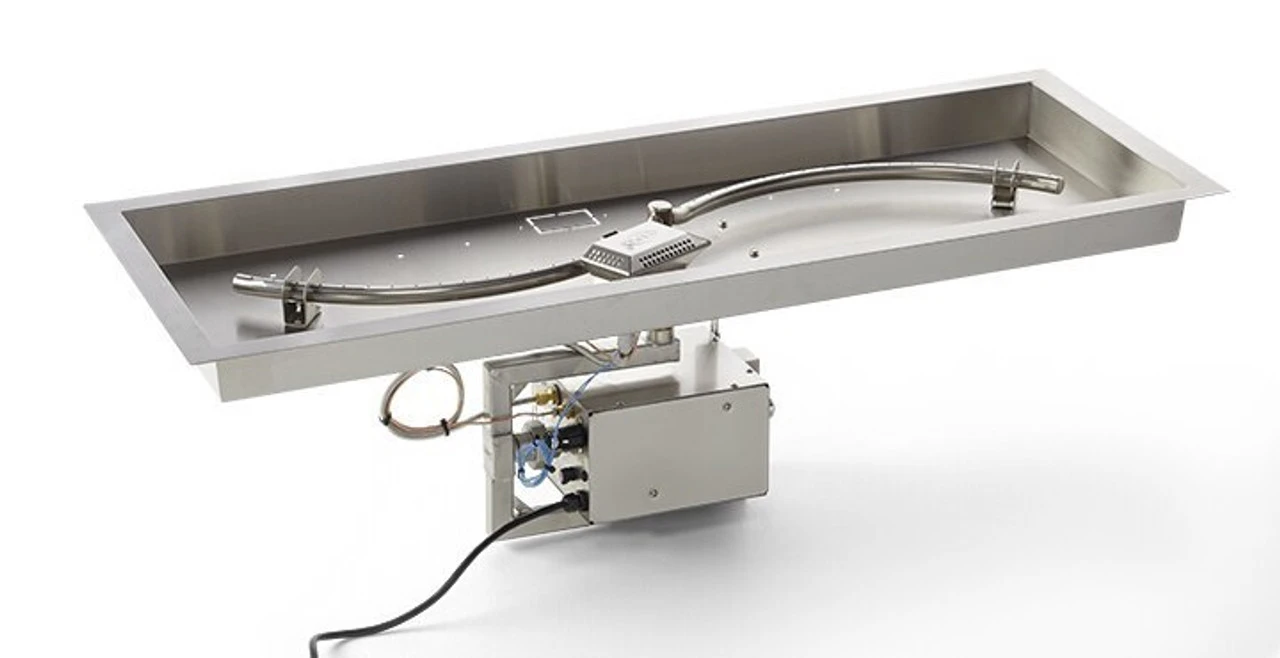

54X16″ Rectangle Pan S-Burner Fire Pit Insert – HI/LO – Electronic Ignition – HPC

Rectangle, Bowl Pan Fire Pit Insert – Electronic Ignition EI

Model # / Description / BTU

36X14SSEI-H-HI/LO / 36X14″ pan, 30X8″ burner, 75k
42X14SSEI-H-HI/LO / 42X14″ pan, 36X8″ burner, 85k
54X16SSEI-H-HI/LO / 54X16″ pan, 48X10″ burner, 110k
66X16SSEI-H-HI/LO / 66X16″ pan, 60X10″ burner, 135k
78X16SSEI-H-HI/LO / 78X16″ pan, 72X10″ burner, 165k

Hi/Lo Models: This option includes a remote control and smart phone app with 2-way communication with the gas fire pit. Remote allows flame height control while receiving information from fire pit to advise user of fire pit status (flashing LED).

Operation

Start Up: This is done by use of a wall switch or remote control (or smart phone on Hi/Lo Models. When the ON command is received, the system completes initial safety checks then starts flow of pilot gas. After 5 seconds the hot surface igniter glows igniting pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame.

Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures / voltages and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing Start sequence.

Shut Down: To turn OFF the fire pit simply use wall switch, remote control or smart phone.

Features

• Fully Assembled- ready to install. Control components are protected within stainless steel valve box.
• Start via wall switch, remote or whole house system; Auto re-light if the flame is lost.
• Ignition is complete using a robust and reliable Hot Surface Igniter.
• On/Off models: Use with optional wall switch or Remote Control available.
• High/Low Flame Control Models: Adjust the high setting to low setting- ~45% turndown (Remote Control and Smart Phone App included).
• 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
• 24vac Option: Typically used poolside or with other lower voltage requirements.
• Natural Gas or Liquid Propane: Factory built & tested for either fuel.
• Internal temperature monitoring with overheat auto shutoff.
• CSA Certified in US & Canada to ANSI Z21.97-2014 / CSA 2.41-2014 requirements. (This new EI system already meets upcoming 2018 ANSI requirements)!
• Optional Controls: On/Off Remote, Timers, Power Supplies and an Emergency Shutoff. (See accessories)

Flat Bowl Type Pan – Gas Fire Pit Insert Models

The fire pit pan is 2-3/8″ deep w/ 1-3/8″ lip

This style of pan is our most popular – available from the small 18″ model to the large 42″ version.

Owner’s Manuals

HPC Fire Pit Insert Electronic Ignition Flame Control System Safety Manual | PDF | Download

HPC Fire Pit Insert Electronic Ignition Safety Manual | PDF | Download

HPC Fire Pit Insert Electronic Ignition Installation and Operation | PDF | Download

HPC Fire Pit Insert Electronic Ignition HI/LO Manual | PDF | Download

HPC Fire Pit Insert Electronic Ignition ON/OFF Manual | PDF | Download

Spec Sheets

HPC Fire Pit Insert Rectangle S-Burner Spec Sheet | PDF | Download

---
