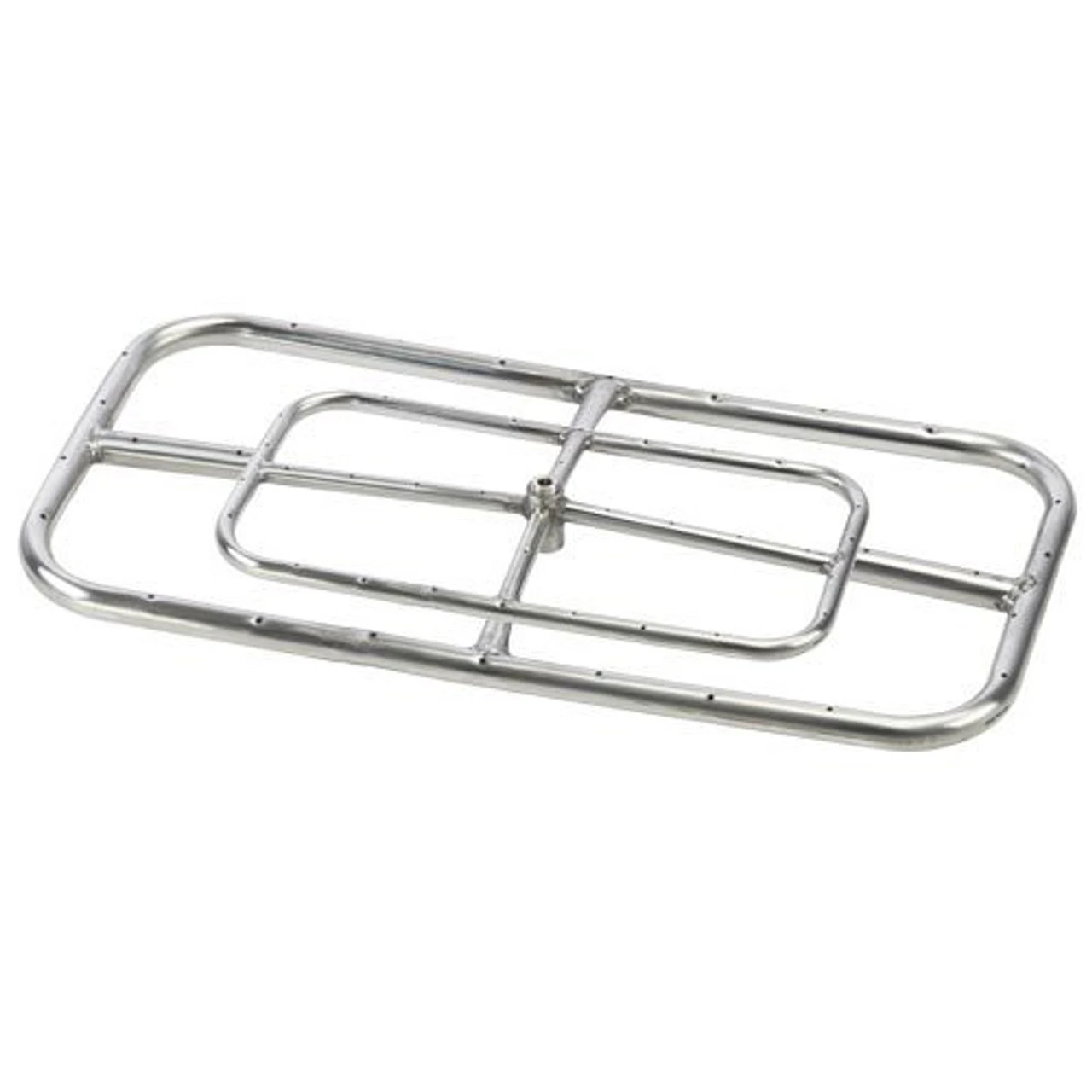

48″ X 24″ Fire Pit Series High Capacity Rectangle Burner, Match Lit Ignition – HPC

The rectangle stainless steel ring by HPC produces a bright, tall flame- it looks great when accompanied with lava rock, and especially with fire glass. Each stainless steel burner ring is match lit, and neatly machine welded to produce a seamless, durable product- providing long-lasting enjoyment to any patio setting!

This burner can be installed DIY or by a professional installer and can be used for either Natural Gas or Liquid Propane applications; when you order a ring for LP applications you will receive a propane conversion kit (includes coupler, close nipple, and properly sized air mixer).

About HPC:

HPC is on the cutting edge of outdoor gas fire pit technology and offers a wide variety of burners to fit the need of any construction or do-it-yourself project. All HPC fire pit rings have staggered burner ports for a more natural-looking flame pattern and presence. Both stainless steel and cold rolled steel burners are available, and both feature ports that are drilled, not punched, for optimal quality; the burner hub is raised above the concentric rings to reduce the risk of water in the valve or gas line.

Fire Rings Features:

• The ring that started it all!
• Sizes from 6″ to 48″
• Standard and high capacity
• Innovative raised hub design reduces unwanted water
• Burner ports are staggered for fuller flame pattern

FPSR24X12 Kit Specification:

• Fuel: Liquid Propane or Natural Gas
• Ignition: Match Lit
• Power Required: Not Required
• BTU (Max): 300k
• Burner Size: 48“X24”
• Burner Type: Rectangle Burner
• Hub/Valve: 1/2″

• Series: FPS Series

Owners Manual – HPC Rectangle Burner

---
