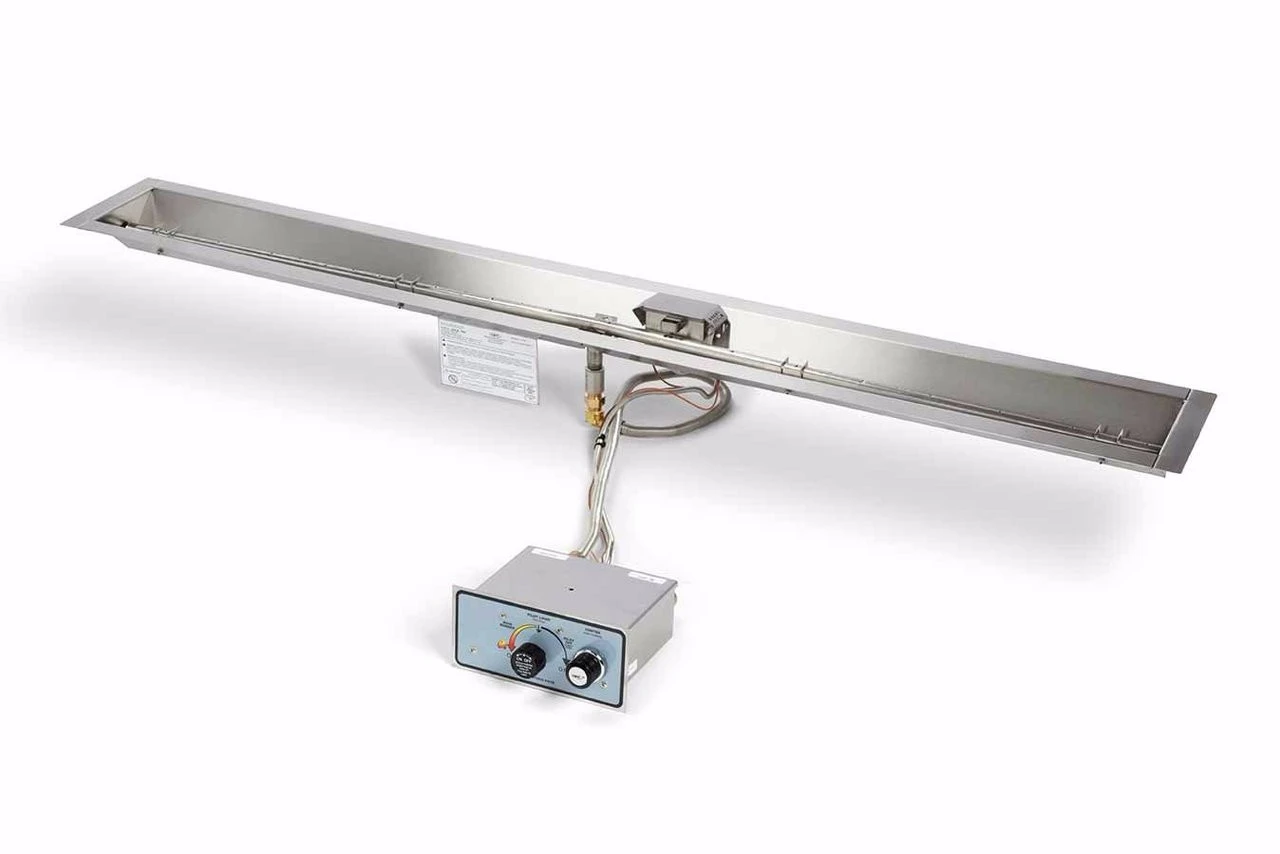

36 Inch Linear Trough Fire Pit Insert Push Button / Flame Sense – HPC

Outdoor Push Button Ignition Linear Trough Burner Kit

These certified gas fire pit inserts incorporate a whistle-free flex line between the gas valve and burner pan offering insert flexibility and simpler installation.

Features

• Perfect for fire pits without electricity and need for flame sensing.
• Flex line configuration
• Flame sensing – flame blows out, gas will turn off
• Spark ignition – No match required.

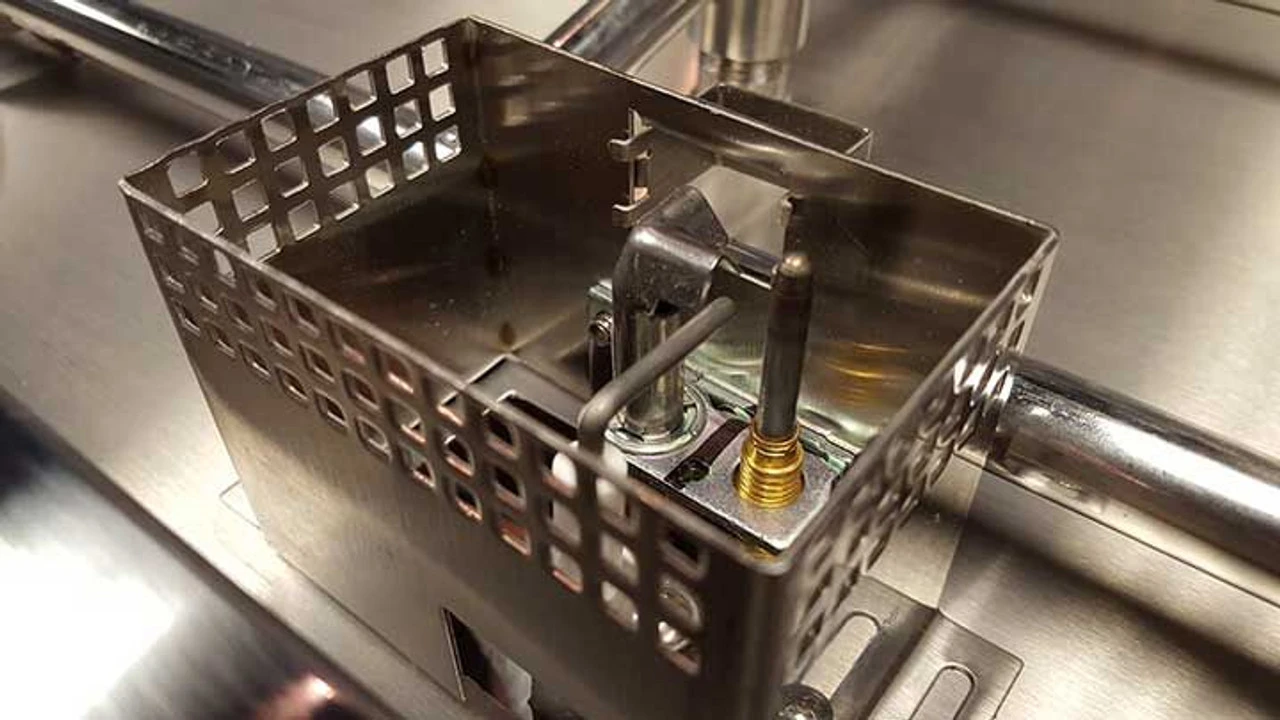

• Complete drop-in fire pit insert utilizes a standing pilot with thermocouple to safely control gas flow, manual spark igniter (AA battery) and safety pilot valve.
• U.L. Certified up to 140K Btu

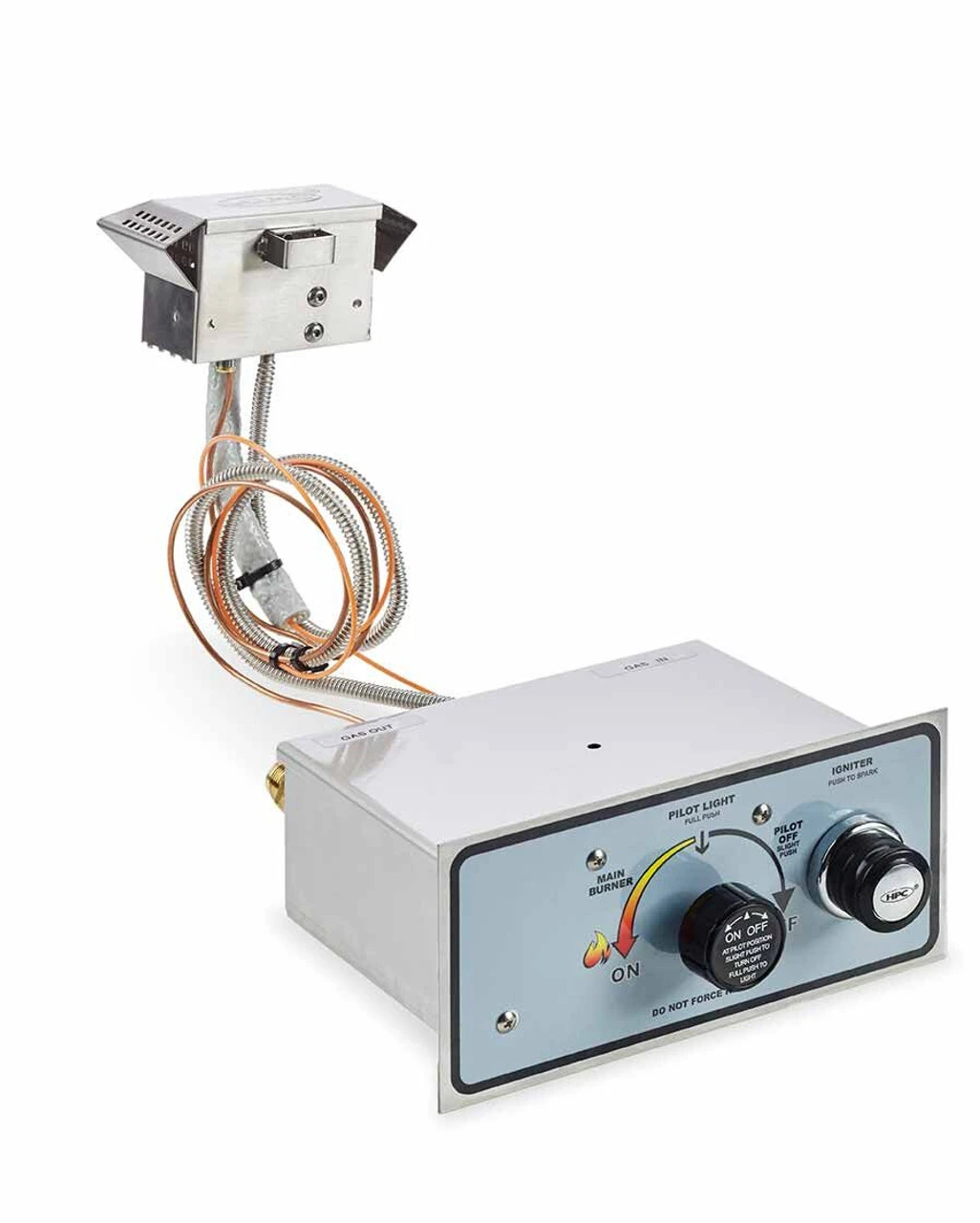

• Comes fully assembled with #304 stainless steel pan & burner, FPPK-HC control box with pilot assembly and whistle-free flex line.

Linear Trouch Pan Specifications – FLEX

Model # / Description / BTU

FPPK24-TRGH-FLEX– 24” Pan, 24” T-Burner, 36” Flex Line, 50k Btu
FPPK36-TRGH-FLEX– 36” Pan, 36” T-Burner, 36” Flex Line, 75k Btu
FPPK48-TRGH-FLEX– 48” Pan, 48” T-Burner, 36” Flex Line, 90k Btu
FPPK60-TRGH-FLEX– 60” Pan, 60” T-Burner, 36” Flex Line, 90k Btu
FPPK72-TRGH-FLEX– 72” Pan, 72” T-Burner, 36” Flex Line, 140k Btu
