30 X 12 Inch Rectangle Bowl Pan Fire Pit Insert – Match Lit – HPC

Outdoor Match Lit Ignition Rectangular H-Burner Kit

Gas Fire Pit Inserts – Match Lit

Flex Line Models

These certified gas fire pit inserts incorporate a whistle-free flex line between the gas valve and burner pan offering insert flexibility and simpler installation.

Now with a Lifetime warranty on all Burners!

Features:

• Perfect for fire pits without electricity
• Flex line configuration
• Decorative key valve gas control – Match Lit
• CSA Certified up to 65k Btu

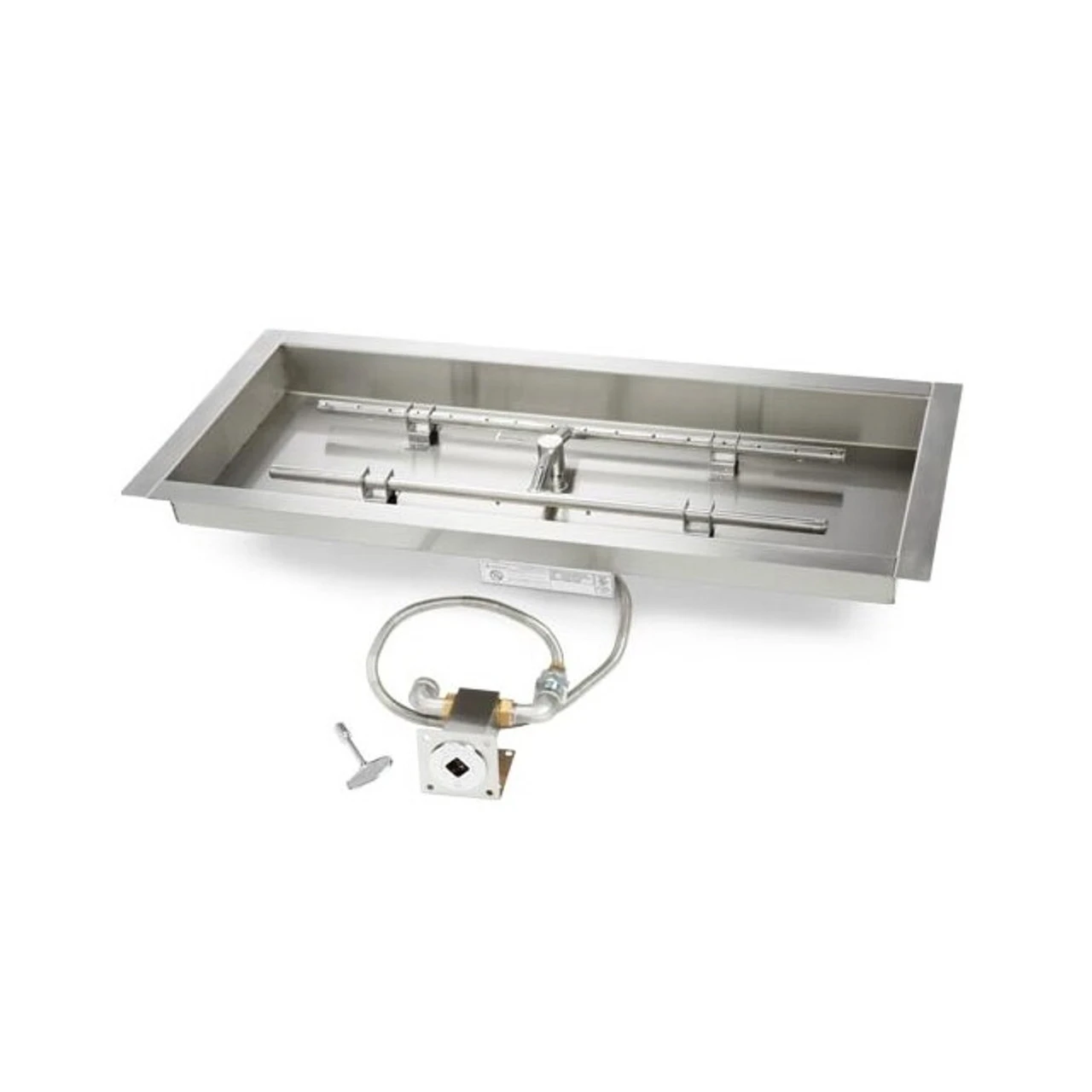

• Comes fully assembled with #304 stainless steel pan, burner, Decorative Key Valve with stainless steel mounting bracket and whistle-free flex line.
• CSA Certified Small Tank Approved with use of STLPK Kit if shown with this symbol (*ST*)

Rectangle Pan Specifications

Model # / Description / BTU

MLFPK24X12-H-FLEX – 24×12” Square Pan, 18×6” H-Burner, 36” Flex Line, 65k Btu
MLFPK30X12-H-FLEX – 30×12” Square Pan, 24×6” H-Burner, 36” Flex Line, 65k Btu
MLFPK36X14-H-FLEX – 36×14” Square Pan, 30×8” H-Burner, 36” Flex Line, 65k Btu

---

Owners Manuals & Spec Sheets

How It Works:

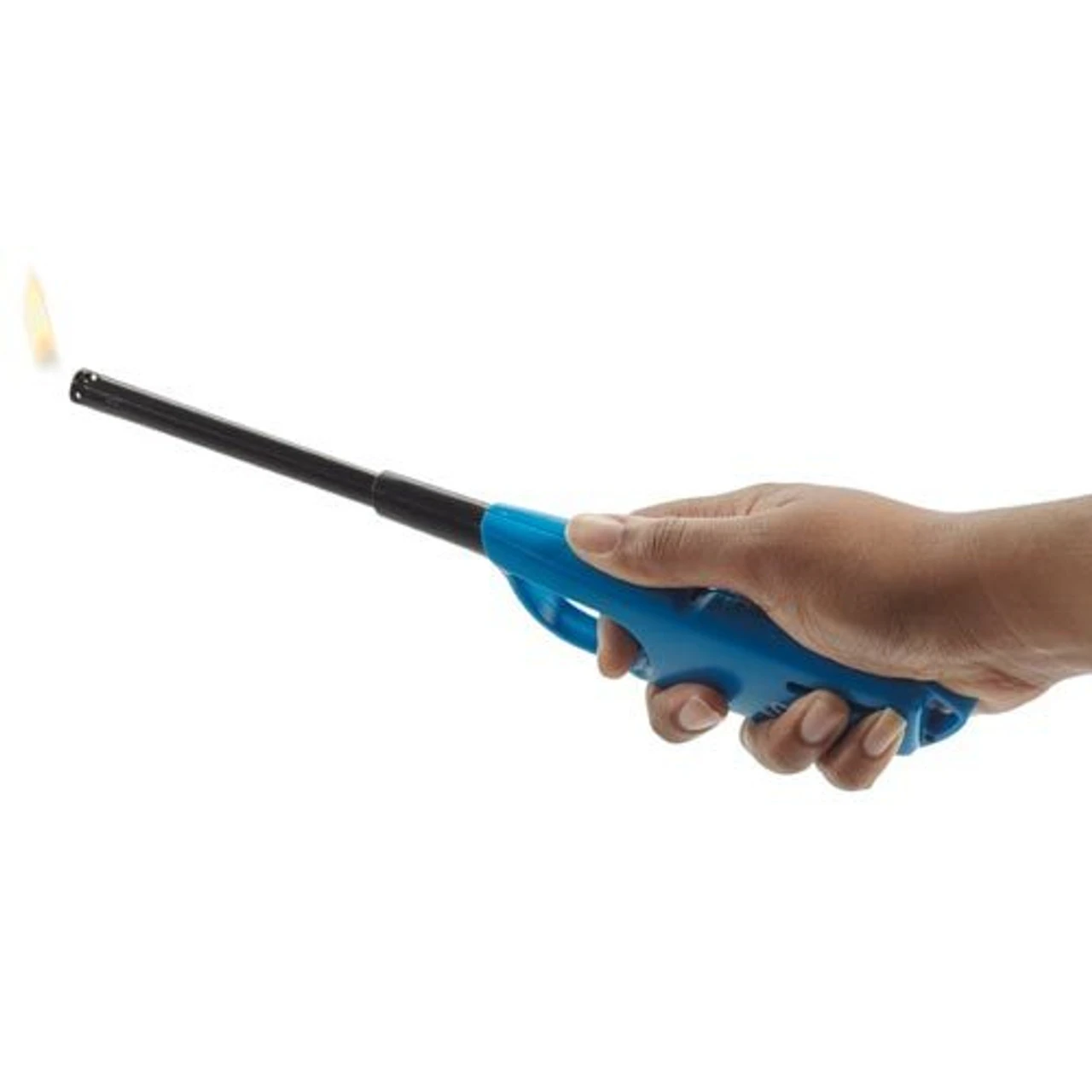

Start Up: This is done by lighting long-stem lighter next to perimeter of burner then slowly open key to valve. Leave key in valve during use.
Operation: Flame height may be adjusted by turning key to valve- counterclockwise provides more flame, clockwise lowers flame.
Shut Down: To turn OFF the fire pit simply turn key to valve clockwise to OFF position. Remove key.

---
