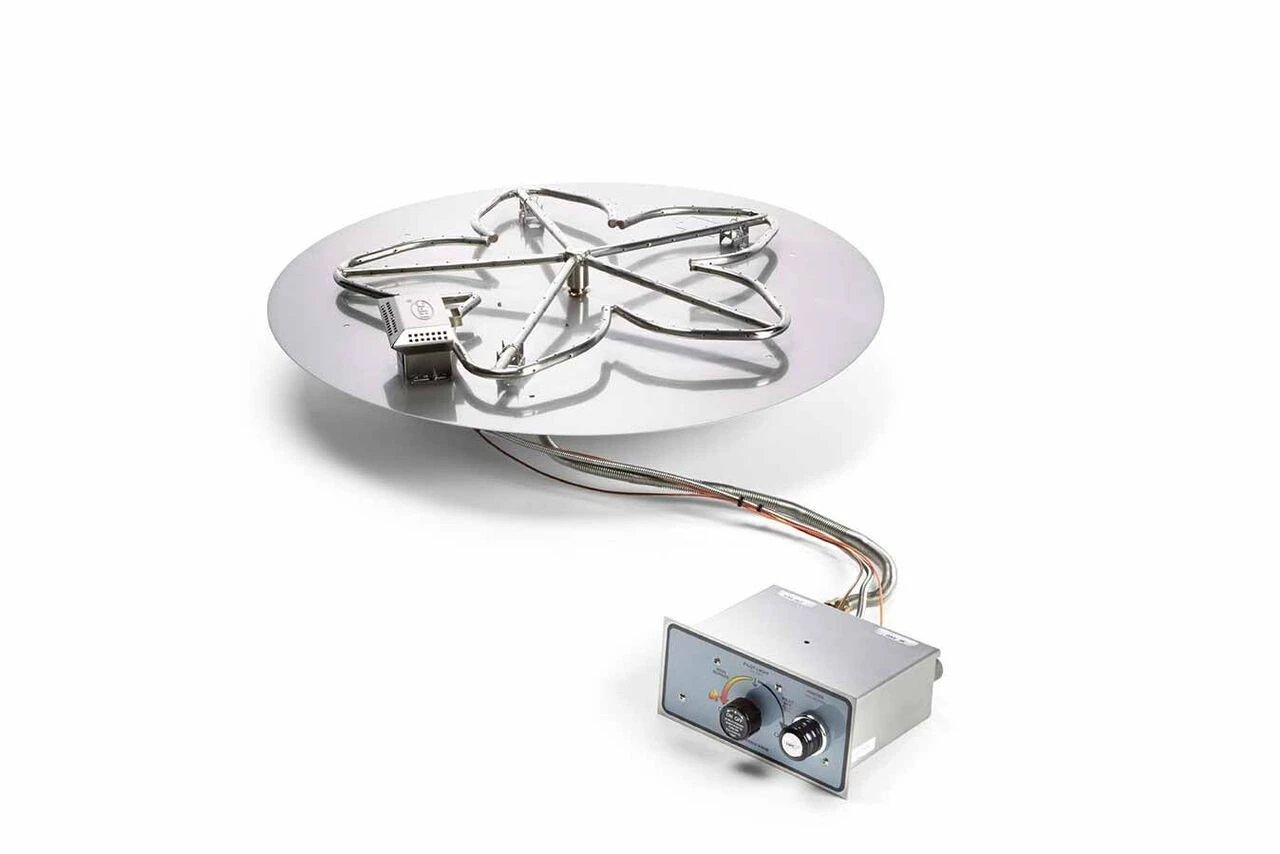

18″ Round Flat Pan Fire Pit Insert Push Button / Flame Sense – HPC

Outdoor Push Button Ignition Penta Flat Pan Burner Kit

These certified gas fire pit inserts incorporate a whistle-free flex line between the gas valve and burner pan offering insert flexibility and simpler installation.

Features

• Perfect for fire pits without electricity and need for flame sensing.
• Flex line configuration
• Flame sensing – flame blows out, gas will turn off
• Spark ignition – No match required.

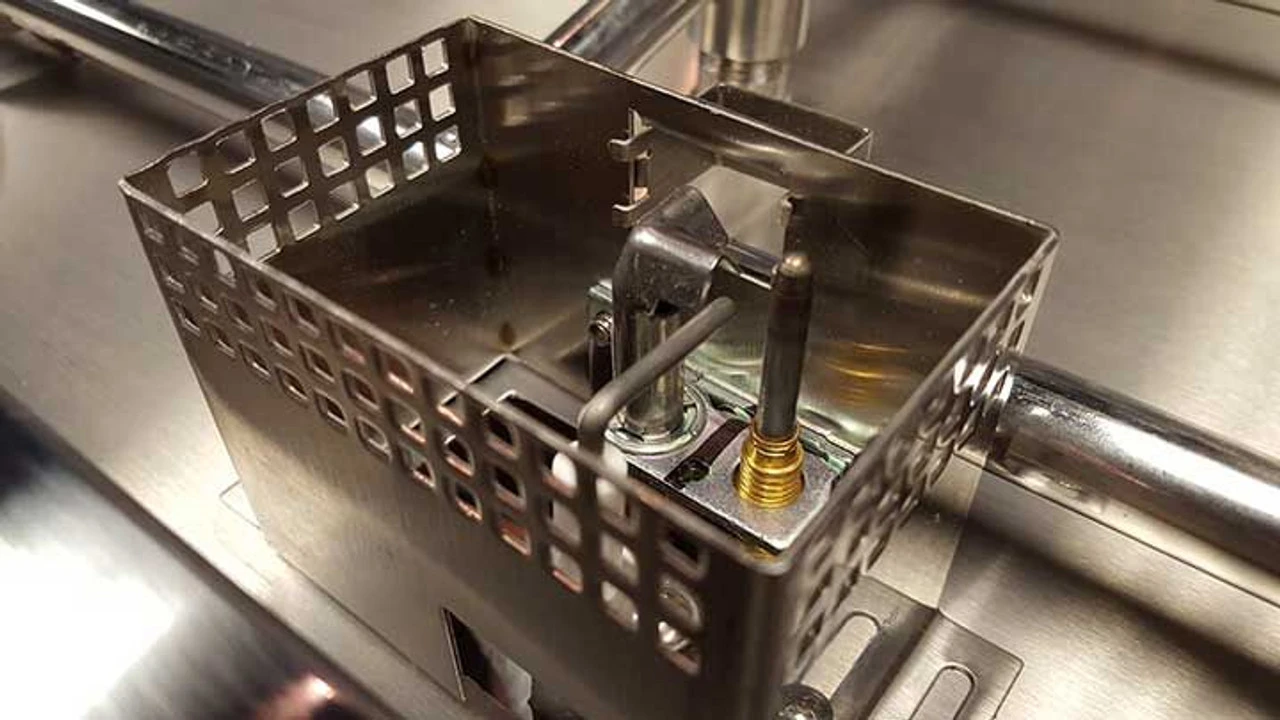

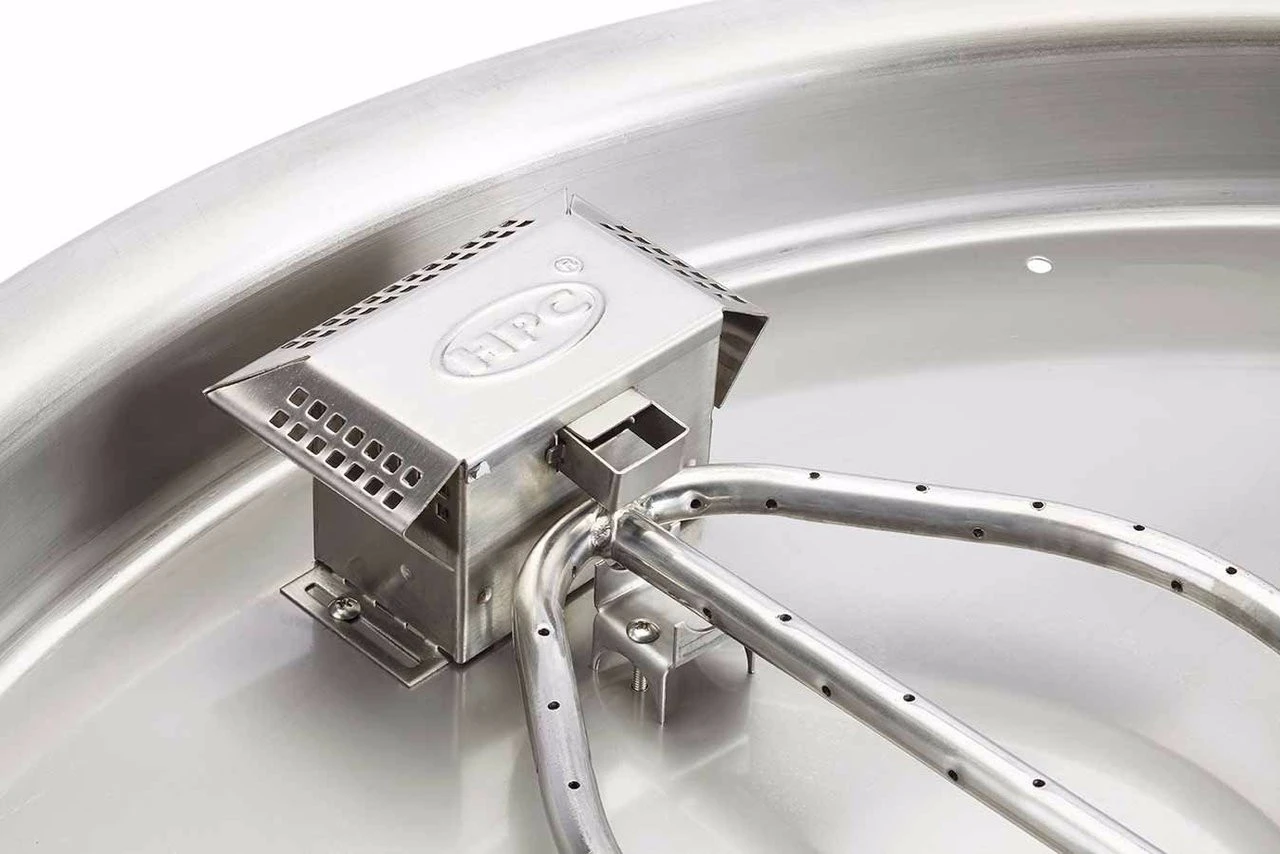

• Complete drop-in fire pit insert utilizes a standing pilot with thermocouple to safely control gas flow, manual spark igniter (AA battery) and safety pilot valve.
• U.L. Certified up to 140K Btu

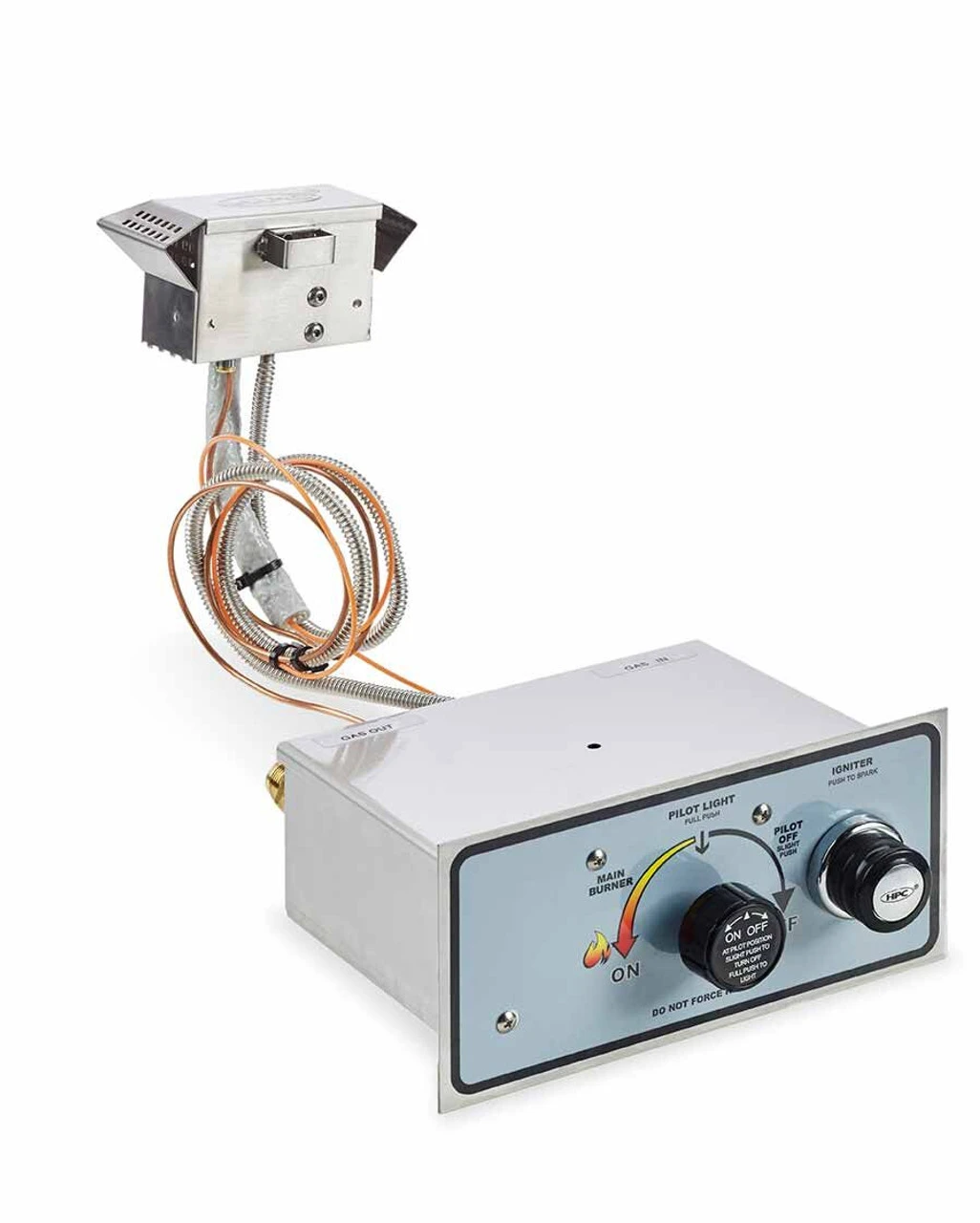

• Comes fully assembled with #304 stainless steel pan & burner, FPPK-HC control box with pilot assembly and whistle-free flex line.

Round Flat Pan Specifications

Model # / Description / BTU

FPPK14-FLEX- 14” Pan, 12” Round Burner, 36” Flex Line, 90k Btu
PENTA18FPPK-FLEX- 18” Pan, 12” Penta Burner, 36” Flex Line, 65k Btu
PENTA24FPPK-FLEX– 24” Pan, 18” Penta Burner, 36” Flex Line, 90k Btu
PENTA30FPPK-FLEX– 30” Pan, 24” Penta Burner, 36” Flex Line, 140k Btu
PENTA36FPPK-FLEX– 36” Pan, 30” Penta Burner, 36” Flex Line, 140k Btu

---

Owners Manuals & Spec Sheets

HPC Fire Pit Flat Round Pan Push Button Spec Sheet | PDF | Download

Small Tank Kit STLPK Manual | PDF | Download

HPC Push Button Flame Sensing Insert Spec Sheet | PDF | Download

HPC Manual Flame Control System Push Button Flame Sense | PDF | Download

---
