18″ Fire Pit Series Penta Burner, Match Lit Ignition – HPC

About HPC:

HPC is on the cutting edge of outdoor gas fire pit technology and offers a wide variety of burners to fit the need of any construction or do-it-yourself project. All HPC fire pit rings have staggered burner ports for a more natural-looking flame pattern and presence. Both stainless steel and cold rolled steel burners are available, and both feature ports that are drilled, not punched, for optimal quality; the burner hub is raised above the concentric rings to reduce the risk of water in the valve or gas line.

Product Description:

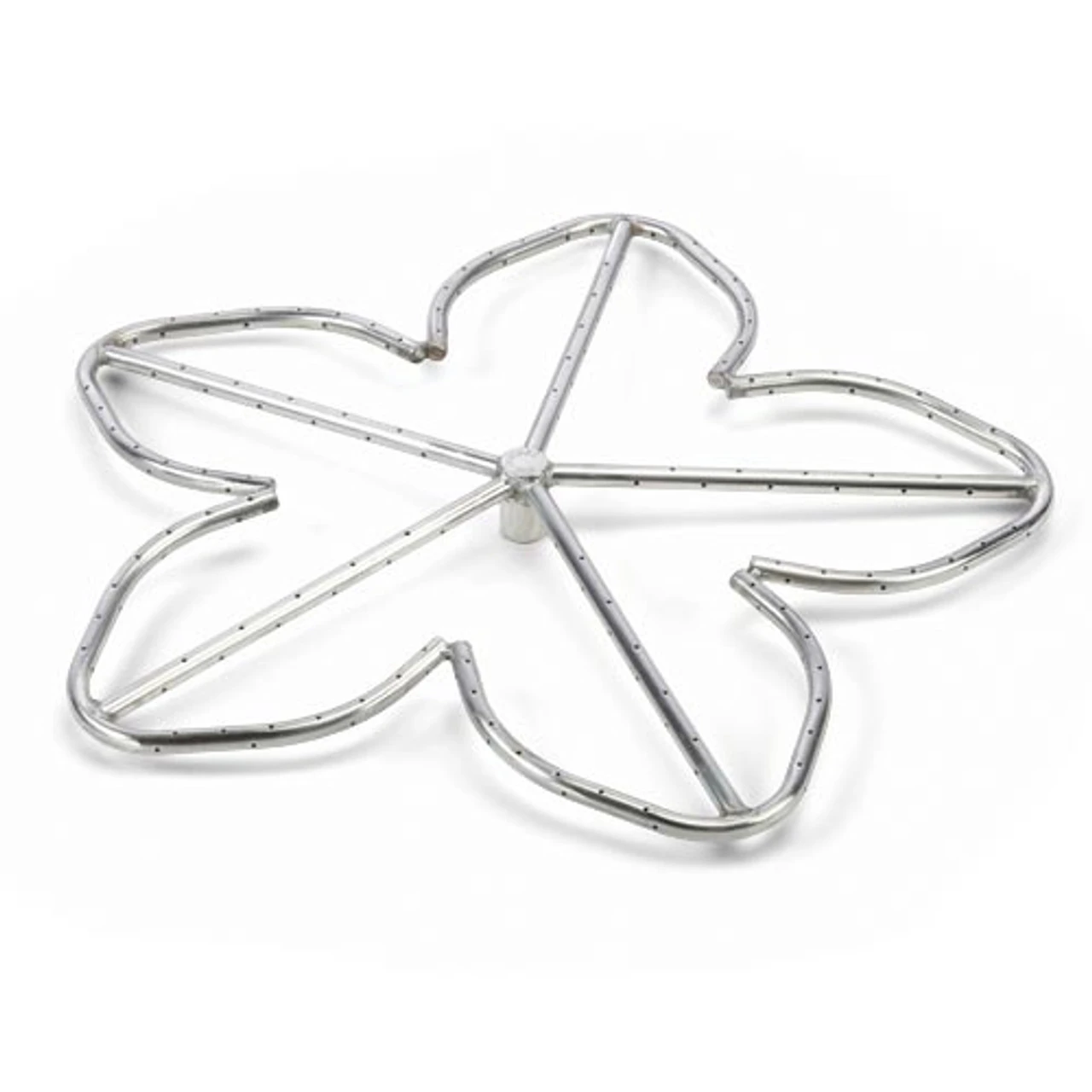

The stainless steel Penta ring by HPC delivers a uniform flame, full from edge to edge- it’s great when accompanied with lava rock, and especially with fire glass. These burners are match lit, while the unique Penta-shape allows you to keep your flame on low without exhibiting the telling ring pattern seen in most round fire rings- perfect for maintaining that natural look for any patio!

HPC offers two types of flow capacity for the Penta burner- Standard and High Capacity. Standard capacity fire rings are constructed with 1/2″ hub, while the High Capacity fire rings use 3/4″ hub.

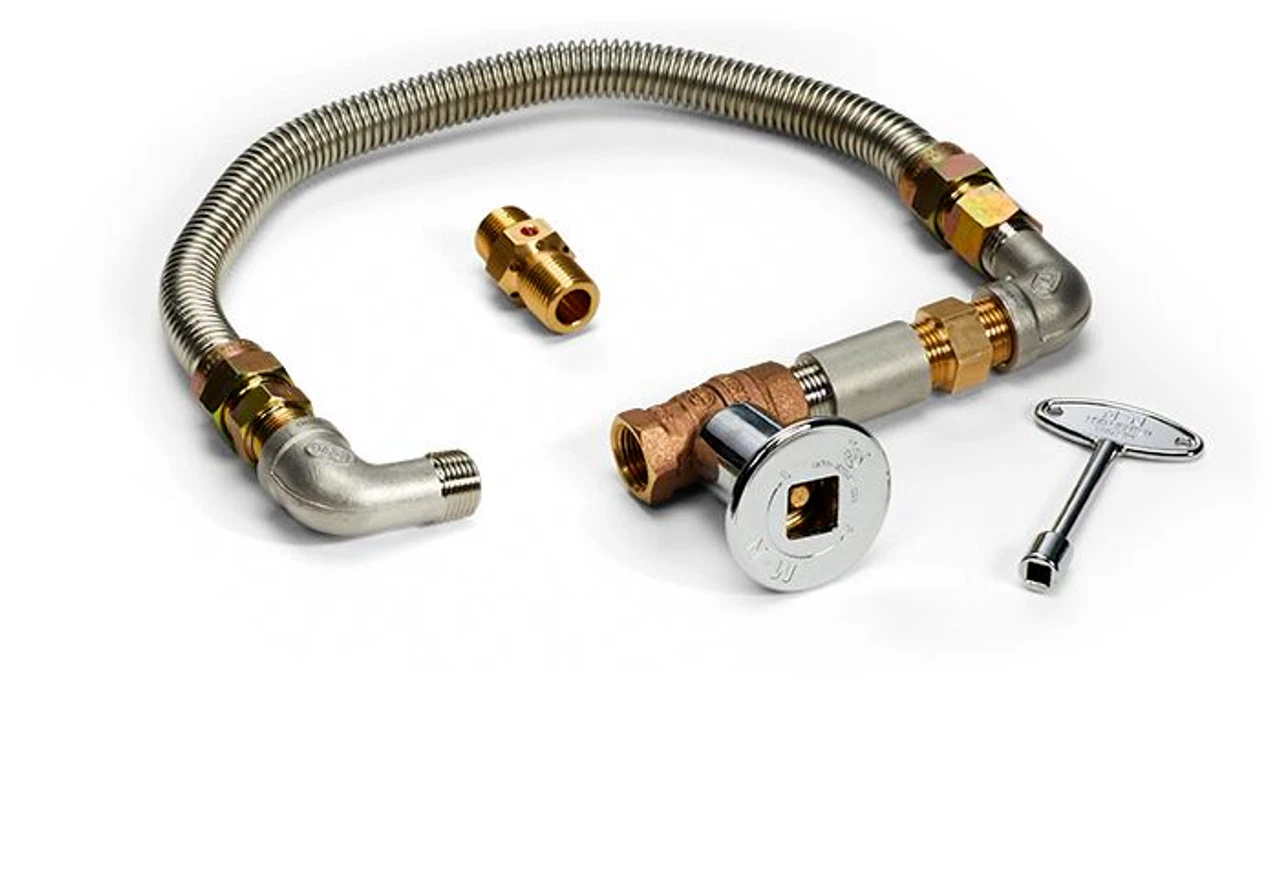

This burner can be installed DIY or by a professional installer and can be used for either Natural Gas or Liquid Propane applications; when you order a ring for LP applications you will receive a propane conversion kit (includes coupler, close nipple, and properly sized air mixer).

Penta Burners Features:

• Campfire effect – taller center flame
• Uses less fuel to attain same flame height as conventional ring
• Innovative raised hub design – reduces unwanted water
• No distinct burner pattern at low flame setting
• Lower profile design requires less media

FPS/ PENTA18 Kit Specification:

• Fuel: Natural Gas, Liqid Propane
• Ignition: Match Lit
• Power Required: Not Required
• BTU (Max): 125k
• Burner Size: 18″
• Burner Type: Penta Burner
• Hub/Valve: 1/2″
• Series: FPS Series

Owners Manual – HPC Penta Burner | PDF | Download

---
