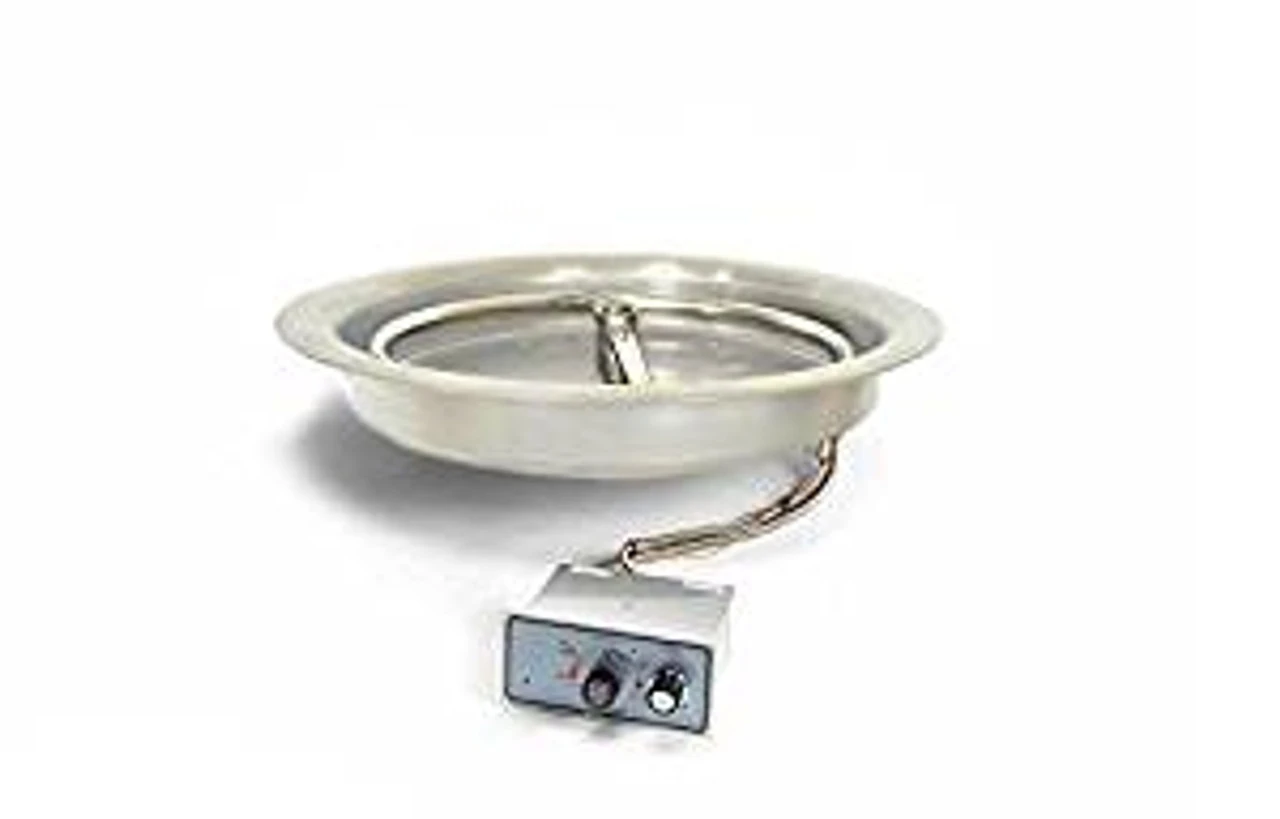

13 Inch Round Bowl Pan Fire Pit Insert Push Button / Flame Sense – HPC

Outdoor Push Button Ignition Penta Round Pan Burner Kit

These certified gas fire pit inserts incorporate a whistle-free flex line between the gas valve and burner pan offering insert flexibility and simpler installation.

Features

• Perfect for fire pits without electricity and need for flame sensing.
• Flex line configuration
• Flame sensing – flame blows out, gas will turn off
• Spark ignition – No match required.

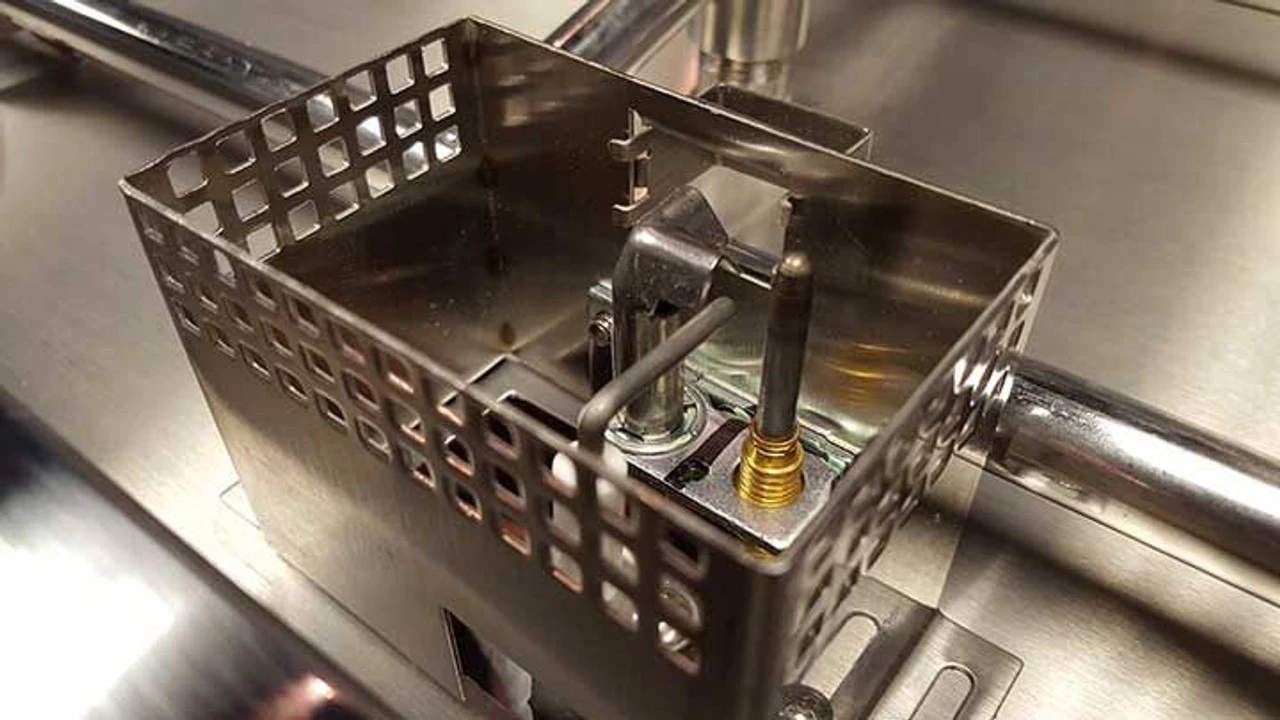

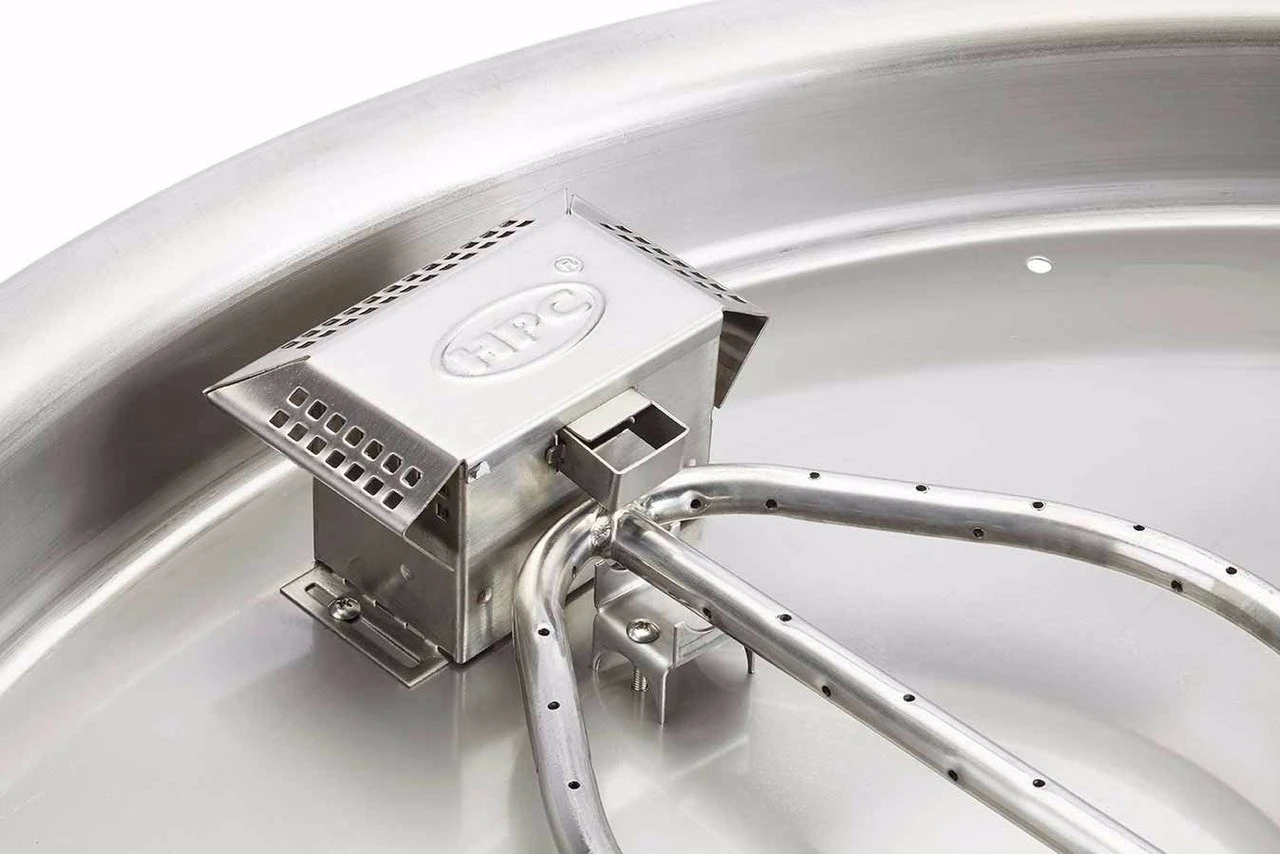

• Complete drop-in fire pit insert utilizes a standing pilot with thermocouple to safely control gas flow, manual spark igniter (AA battery) and safety pilot valve.
• U.L. Certified up to 140K Btu

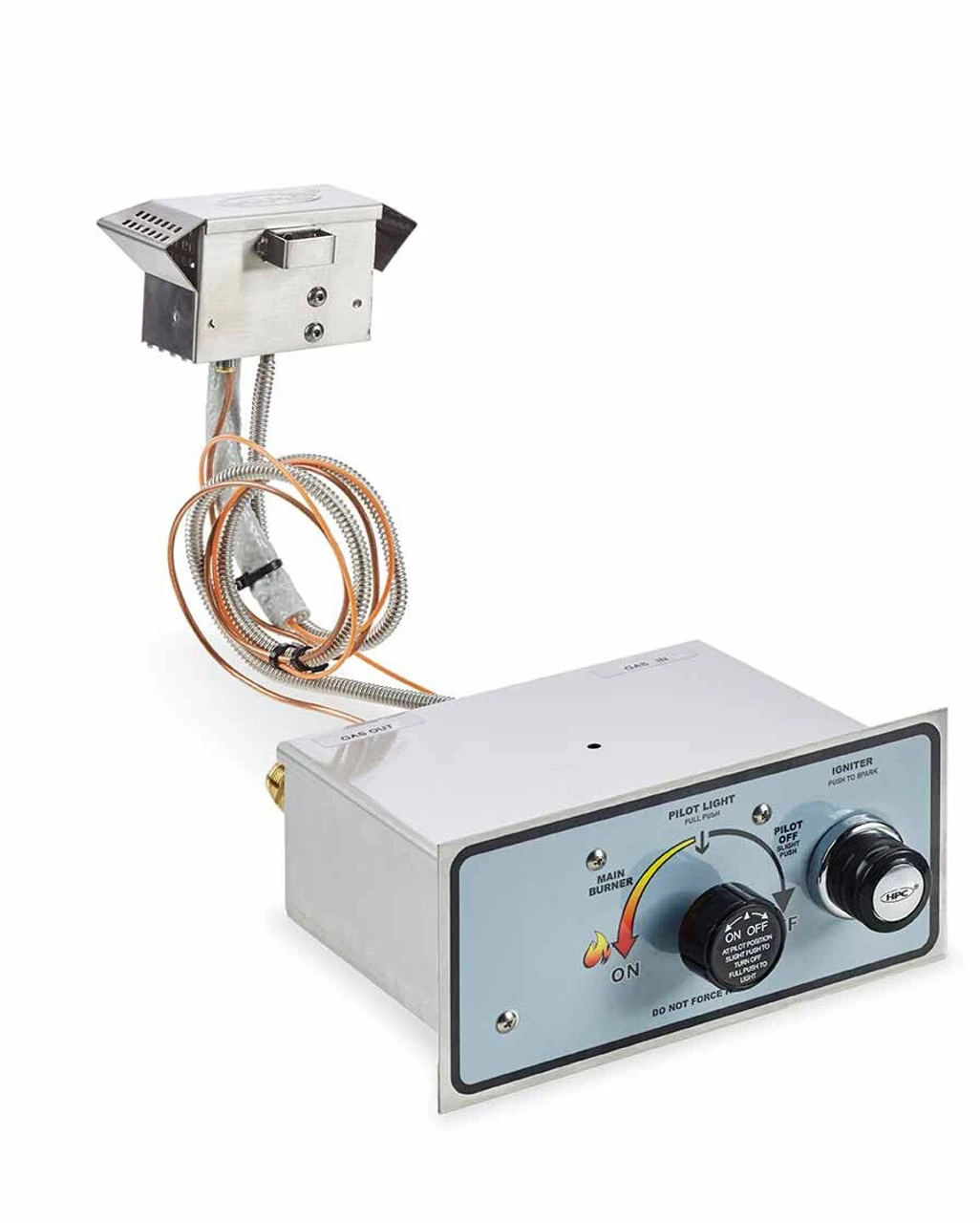

• Comes fully assembled with #304 stainless steel pan & burner, FPPK-HC control box with pilot assembly and whistle-free flex line.

Round Bowl Type Pan Specifications

• Pan is 2-3/8″ deep w/ 1-3/8″ lip
• This style of pan is the most popular – available from the small 13″ model to the large 43″ version.

Model # / Description / BTU

FPPK13-FLEX – 13” Pan, 12” Round Burner, 36” Flex Line, 90k Btu
PENTA19FPPK-FLEX- 19” Pan, 12” Penta Burner, 36” Flex Line, 65k Btu
PENTA25FPPK-FLEX- 25” Pan, 18” Penta Burner, 36” Flex Line, 90k Btu
PENTA31FPPK-FLEX- 31” Pan, 24” Penta Burner, 36” Flex Line, 140k Btu
PENTA37FPPK-FLEX- 37” Pan, 30” Penta Burner, 36” Flex Line, 140k Btu
